G60 (S-Series)
Intelligent
High
Speed Dome:
AU-G60-SP18A |
|
 |
|
|
|
Intelligent 5" Indoor Speed Dome Camera |
|
AU-G60-SP18A
(Day/Night) |
 |
|
|
|
 |
|
|
 |
|
|
-
18X
Optical
Zoom 1/4" Ex-View HAD CCD
-
480
TV Lines, f4.1-73.8mm
-
Day/Night
Function 0.7 Lux (Day), 0.01 Lux (Night)
-
128
Preset Positions
-
OSD
(On Screen Display) configuration menu with
password protection
-
Privacy
Mask (8 zones)
-
360
Continuous Pan Rotation
-
Operation
temperature from 0C
to 50C
-
5-inch Indoor Speed Dome
-
Auto Iris & Focus
-
Pan speed 0.5~300/sec
-
Tilt speed 0.5~150/sec
-
AC 24V input
|
-
Alarm
Function (4 Alarm Inputs, 1 Output)
-
Self-Learn
Function
-
OSD
Pan / Tilt Angle Display
-
Auto
Pan function between 2 preset positions
-
5
Tour/Sequence tracks
-
Die-cast
Aluminum Construction Housing
-
Sony
Original Camera
-
RS
485 communication
-
Auto-adjustment of P/T speed proportionally
to zoom factor
-
Low Noise Design, High-Speed PTZ device
-
Multiple controlling protocol
-
Express-mount construction for a simple
installation and quick maintenance
|
|
|
|
 |
| |
|
Model |
AU-G60-SP18A |
|
Effective Pixels |
752(H) x 582(V) |
|
Pickup-Device |
Original Sony 18X Zoom 1/4" Ex-View HAD
CCD |
|
Scanning Area |
3.6mm(H) x 2.7mm(V); 1/4" CCD |
|
Video Output |
1.0Vp-p 75 Ohm BNC |
|
Horizontal Resolution |
480
TV Lines |
|
Minimum Illumination |
0.7 Lux
(Day), 0.01 Lux (Night) |
|
S/N Ratio |
More
than 50 db |
|
Iris |
Auto |
|
Focus |
Auto
/ Manual |
|
Focal Length |
f4.1
~ 73.8mm |
|
Zoom Ratio |
18X
Optical
Zoom x 12 |
|
White Balance |
Auto/Manual;
R, B Color Adjustable |
|
Electronic Shutter |
Auto
/ Manual |
|
AGC |
Auto
/ Manual |
|
BLC |
ON/OFF |
|
Privacy Mask |
8 Zones |
|
Password Protection |
ON/OFF |
|
OSD (On Screen Display) |
ON/OFF (Preset, Name, Camera Function ... etc) |
|
Panning Range |
360
endless |
|
Pan Speed |
0.5
- 300 /
sec |
|
Tilt Range |
0 ~
100 |
|
Tilt Speed |
0.5
- 150 /
sec |
|
Preset Position |
128
Preset Positions |
|
Tour / Sequence |
5 Programmable Auto Tracking |
|
Auto-Rotation |
Vertical 90 |
|
Controls |
Pan,
Tilt, Preset Positions |
|
Tour / Sequence |
5 Programmable Auto Tracking |
|
Self Learning Function |
Yes |
|
Angle OSD Function |
Yes |
|
Alarm Function |
4 Inputs, 1 Output |
|
Auto Pan |
ON/OFF; between 2 presets |
|
Communication |
RS485 |
|
Video Source Protection |
Yes |
|
Communication Protection |
Yes |
|
Power Source Protection |
Yes |
|
Power Source Mode |
AC24V |
|
Operation Temperature |
0C
~ 50C |
|

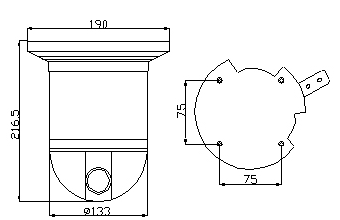

Dimensions |
 133 x 216.5mm (H) |
|
Weight |
Approx 5Kg |
|
|
|
|
|
|
|
