Display
&
Recording Speed |
DigiNet-4416H |
DigiNet-44216H |
DigiNet-58216H |
100 frames
(PAL) |
200 frames
(PAL) |
400 frames
(PAL) |
120 frames
(NTSC) |
240
frames
(NTSC) |
480
frames
(NTSC) |
| Image Compression Method |
Engine-K (self-developed,
better than MPEG-4) |
| Image Compression Dimension |
160
X 120(NTSC), 192 X 144(PAL) = Avg.
1.0 Kb/F
320 X 240(NTSC), 384 X 288(PAL) = Avg. 2.5 Kb/F
640 X 480(NTSC), 768 X 576(PAL) = Avg. 6.0 Kb/F |
| Screen Division |
1,
4, 6, 9, 10, 13, 16 Channels |
| Camera Input |
16
Channels |
| External Monitor |
1 CH (Auto- Select) |
| Control Output |
8 CH
(optional) |
| Remote Transmission |
PSTN
/ ISDN / LAN / Leased Circuit / ADSL Modem / Cable Modem |
| Image Verify |
WATER-MARK included |
| Auto Tracking |
MOTION TRACKING function |
| Transmission Speed |
LAN:120F/S , PSTN:1~5F/S , ISDN:3~10F/S |
| Surveillance Method |
MOTION DETECTION |
| Firmware
Upgrade |
Remote Upgrade : FTP, TFTP |
| Web
DVR - NEW |
Remote
Monitoring using Web Browser (Internet Explorer) |
| Audio |
1 CH |
| Pan/Tilt/Zoom Control |
RS-422 |
| Others |
WATCH-DOG |
| Input Voltage |
AC 110~220V 50/60Hz INPUT |
| Camera
Input |
16 CH
NTSC/PAL BNC connection |
| Working Temperature |
-10¢XC ~
+50¢XC |

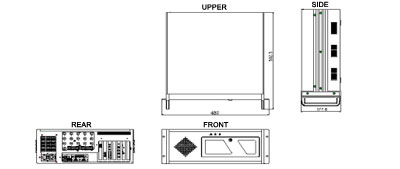

| Dimension |
482(W) x 177.6(H) x 502.5(D) (include both wings) |
